Electric Three-Way Sanitary Ball Valve

The electric sanitary three-way ball valve (clamp-type) is suitable for industries with stringent hygiene requirements, such as food processing and pharmaceutical manufacturing. Available in L-type and T-type configurations, it facilitates the diversion, convergence, and directional alteration of media flow. Featuring clamp-type connections to pipelines, this valve offers advantages including easy disassembly, straightforward installation, and simplified maintenance.

Parameters

Specifications: DN40-DN800

Material: 304

Brand: Tianjin Yibiao

Model: YBFM

Previous Next

Product Details

Electric Sanitary Three-Way Ball Valve

Valve Model: Q984F, Q985F

Nominal Diameter: DN15 to DN100

Configuration: T-Type Three-Way, L-Type Three-Way

Body Material: Stainless Steel 304, Stainless Steel 316, Stainless Steel 316L

Nominal Pressure: PN10

Operating Temperature: ≤180°C

Applications: Food processing, pharmaceuticals, cosmetics, clean steam, alcoholic beverages, beverages, etc.

Product Features: Safe and hygienic, excellent sealing performance, multi-functional, capable of both directional switching and flow diversion/combination

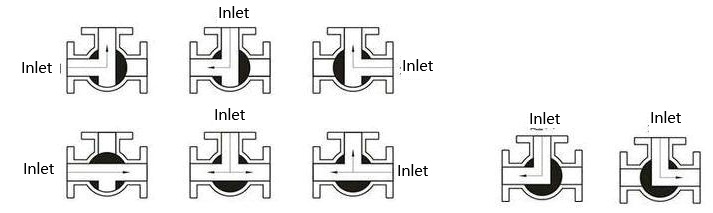

The electric sanitary three-way ball valve not only enables switching of medium flow direction but also allows interconnection of all three channels. Any single channel can be closed while the other two remain connected, flexibly controlling pipeline flow diversion or combination (flow direction as shown below).
